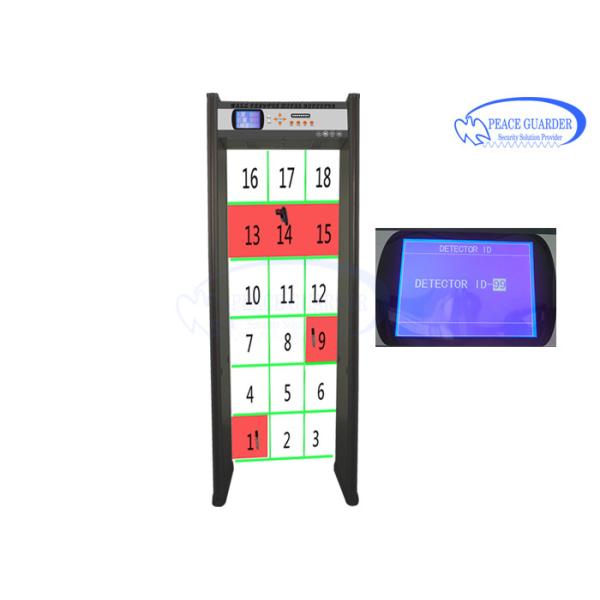

18 Detection Zone Walk Through Metal Detector Gate With Directional
Counter and Remote Control PG600M
The PG600M is a metal detector gate with 18detection zone .
We can use a Remote control to set up the gate . in this way, it's
easier to operate .
And we can see all the parameter on the big LCD screen.
1) Multidimensional coil design (18 pinpoint zones) provides
superior detection and location of guns, knives and other flat and
rod-shaped weapons regardless of orientation.
2) Circuitry with advanced Digital Signal Processor (DSP)
technology locates even small, hard-to-find, floor level weapons.
3) Individual zone boost adjustments allow for customization of
detection characteristics and/or compensation for metallic
4) Can be connected to the PC for the communication .
5) With REMOTE Control
6) Optional interface for the CCTV, Monitor
♦ Operating Temperatures : -4°F (-20°C) to + 158°F (70°C); Humidity: To 95% non-condensing
♦ Power : Fully automatic 100 to 240 VAC, 50 Hertz, 15 watts; no rewiring,
switching or adjustments required. Power supply meets UL, CE,FCC
♦ Weatherproofing / Foreign Object Protection Standards
|♦ Tamper-Proof : All settings are secured with a key lock and two levels of access
codes. Further security is accomplished with a cabinet lock which
prevents unauthorized access to physical cables, connectors and
|♦ Construction : Attractive scratch and mar-resistant laminate. Detection Heads and
Support: Heavy duty aluminum.|
|♦ Control Outputs : Solid state switches (low voltage AC or DC) for
operating external alarms and control devices.|
|♦ Traffic Counter : Counter tracks the number of patrons that have passed through the
detector, the number of alarms and calculates alarm percentage.|
|♦ Synchronization : Dual channels and DSP circuitry allow several PG600M's to operate
simultaneously in close proximity to one another.|
|♦ Interference Suppression : Special DSP built-in circuitry eliminates effects from x-ray
monitors and other potential electrical interference sources.|
|♦ Alarms : Audible tone and volume adjustable. Bright LED visual alarm.|
|♦ Target Pinpointing Lights : 18 distinct zones are displayed with 2 independent columns of
LED's located on exit side of PG600M.|
|♦ Pacing Lights : International symbols|
|♦ Warranty : Limited 24 months|
Power Supply : 220V/AC
Power : <15W
External Dimension : 2200mm(H)*820mm(W)*550mm(D)
Passageway Dimension : 2000mm(H)*700mm(W)*550mm(D)
Work environment : -20°C- +70°C
Standard : GB15210-2003<WALK THROUGH METAL DETECTOR>
|Instruction||ONE (Including one Certificate of Quality & Guarantee Repair
|Main Case||0.755m*0.485m*0.255m (Carton)|
Electrical Equipments standardized by EN60950.
Radiation standardized by EN50081-1.
Anti-inference standardized by EB50082.
Execute the standard of National Standard of Metal Detector
